Fanless Model 22”

  • Optional MSR Bracket - Part# UNY-MSRBR-U41
  • Optional 3 Track USB MSR - Part# US-MSR-3TRK-U

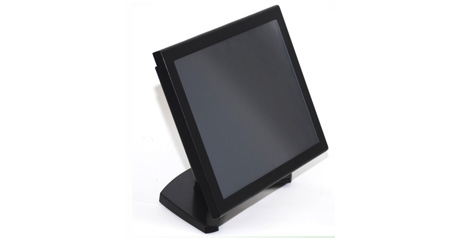

The Panel PC Modular Terminal utilizes the same technology as our ModPOS and is made of the same high quality powder coated steel for ultimate sturdiness and durability to stand up to the harshest environments. Combined with a 17” or 22” Touch Screen display, MiniBox PC and our mounting bracket becomes a robust reliable modular A-I-O Terminal that can be mounted on a wall with option brackets or a premium base.

Specifications

  • CATEGORY: Modular Gaming Fanless Terminal
  • TOUCH: 5 Wire Resistive Anti-Glare
  • MOTHERBOARD: Intel Motherboard D525
  • CPU: Intel Atom Dual Core 1.8Ghz
  • CPU Fanless
  • MEMORY: 1 GB DDR3-1333 Max 4GB
  • HARD DRIVE: 250GB SATA 5400 rpm
  • VIDEO GRAPHICS: Intel X4500
  • BRIGHTNESS: 300 Nits
  • Contrast: 1000:1

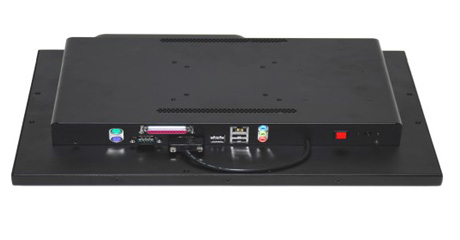

  • PORTS: 4x USB 2.0, 1x RS232, 1x SVGA, 1x S-Video, 1x Lan, 1x LPT1, Audio Ports, 3x Audio
  • LAN: 1x RJ45 10/100
  • CASING: Modular Rugged Metal Housing
  • WEIGHT: 28 lbs Gw Includes Packaging
  • POWER: External Ac 12V,universal auto sensing, 36W
  • LCD DISPLAY: TAP High Bright 22” 1680x1050 16.7M Colors
  • DIMENSIONS (LxWxH) 22”x7”x17”
  • CERTIFICATIONS: FCC Class A, CE, RoHs
  • WARRANTY: 3 Years Parts and Labor
