(Intel I3 Model) 17”

  • Optional MSR Bracket - Part# UNY-MSRBR-U41
  • Optional 3 Track USB MSR - Part# US-MSR-3TRK-U

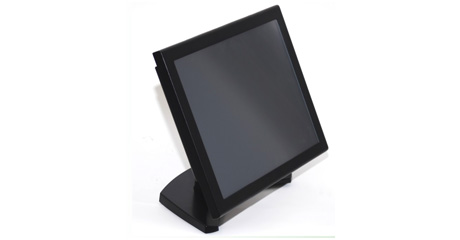

The Panel PC Modular Terminal utilizes the same technology as our ModPOS and is made of the same high quality powder coated steel for ultimate sturdiness and durability to stand up to the harshest environments. Combined with a 17” or 22” Touch Screen display, MiniBox PC and our mounting bracket becomes a robust reliable modular A-I-O Terminal that can be mounted on a wall with option brackets or a premium base.

Specifications

  • CATEGORY: Modular Gaming Fanless Terminal
  • TOUCH: 5 Wire Resistive Anti-Glare
  • MOTHERBOARD: Intel I3 DH61DL
  • CPU: Intel I3-3220 Dual Core 3MB L3 Cache 3.30GhZ
  • CPU Fanless
  • MEMORY: 2 GB DDR3-1333 Max 8GB
  • HARD DRIVE: 250GB SATA 5400 rpm
  • VIDEO GRAPHICS: Intel HD Graphics 1-DVI, 1-VGA
  • BRIGHTNESS: 300 Nits
  • Contrast: 1000:1

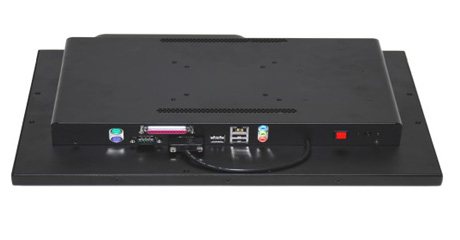

  • PORTS: 4x USB 2.0, 2xUSB 3.0, 1x RS232, 1x SVGA, 1xDVI, 1x S-Video, 1x Lan, 1x LPT1, Audio Ports, 3x Audio
  • LAN: 1x RJ45 10/100
  • CASING: Modular Rugged Metal Housing
  • WEIGHT: 22 lbs Gw Includes Packaging
  • POWER: External Ac 12V,universal auto sensing, 36W
  • LCD DISPLAY: TAP High Bright 17” 11280x1024 16.7M Colors
  • DIMENSIONS (LxWxH) 16”x7”x14”
  • CERTIFICATIONS: FCC Class A, CE, RoHs
  • WARRANTY: 3 Years Parts and Labor
  • OPERATING SYSTEMS: XPPRO
